Chariot télescopique Qingdao Promising 3.0T Telescopic Handler ZL30 neuf

Applications:

The telescopic wheel loader features a telescopic boom for additional height, added versatility and greater production. This wheel loader with telescopic arm offers excellent maneuverability, overall machine stability and the telescopic boom provides extra reach for stacking and dumping.


Features:

1. Telescoping boom for extra reach, stacking and dumping height.

2. Operator station offers a spacious and functional layout for operator comfort.

3. Hydraulically operated quick-hitch allows for efficient changing from one accessory to another without leaving the operator's station.

4. All wheel steer and rigid frame provide excellent maneuverability and constant payload stability even when turning.

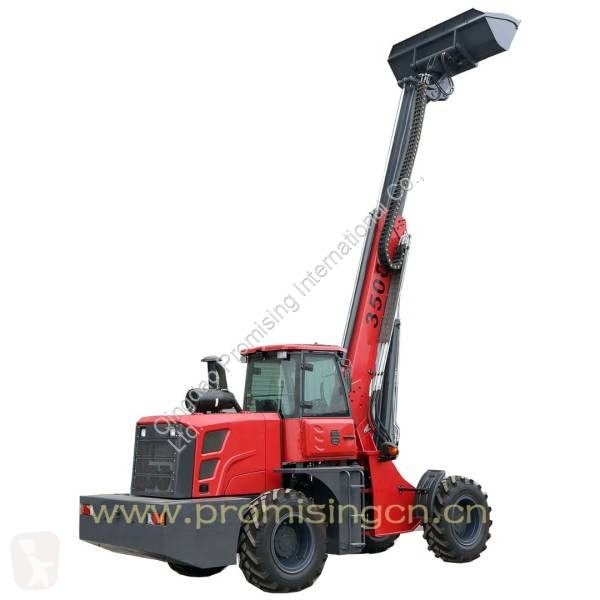

3.0T Telescopic Handler ZL30

Technical Specifications:

1. Rated Load: 3000kg

2. Total Weight: 8000kg

3. Rated Bucket Capacity: 1.3CBM

4. Bucket Width: 2280mm

5. Dumping Height (fully raised height to the pin): 6500mm

6. Overall Dimensions (L x W x H): 7550*2280*3250mm

7. Engine Model: CUMMINS 6BT5.9-C125

8. Engine Type: Six-cylinder, Inline, Water-cooled, Turbocharged Diesel Engine

9. Rated Power of Engine: 92kW

10. Rated Speed of Engine: 2000rpm

11. Hydraulic Torque Converter: Integrated Hydraulic Torque Converter

12. Gear Shift: 1 Forward, 1 Reverse, 1High Speed, 1 Low Speed

13. Max. Speed: 35km/h

14. Model of Axle: Hub Reduction Axle

15. Wheel Tread: 1750mm

16. Wheel Base: 2800mm

17. Drive Mode: 4-wheel Drive

18. Steering Mode: Articulated Hydraulic Steering

19. Hydraulic System Working Pressure:20MPa

20. Hydraulic System Working Pump Type: Gear Pump

21. Service Brake: Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels

22. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake

23. Tyre Type Specification: Pneumatic Tire16/70-24-16PR (Width: 440mm, Diameter: 1280mm)

24. Front Tyre Pressure: 0.40Mpa

25. Rear Tyre Pressure: 0.35Mpa





Optional Parts and Functions:

Canopy, Open Cabin, FOPS/ROPS, Tilting Cabin, Air Conditioner, Colour Coded Electronic Gear Shift Button on Joystick, Gear Shift Lever with Electronic Control, Reversing Camera, Extra Hydraulic Lines, Rear Hydraulic System, LED Lights, and Floating Function, etc.





Note:

1. The technical specifications are for standard models only.

2. Other optional accessories and requirements are available upon request.

3. All photos are for reference only. Machines shown may include optional parts.

4. All specifications and design characteristics are subject to change without prior notice.

5. For all available loader attachments, please refer to our Loader Attachments Catalogue.

6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
