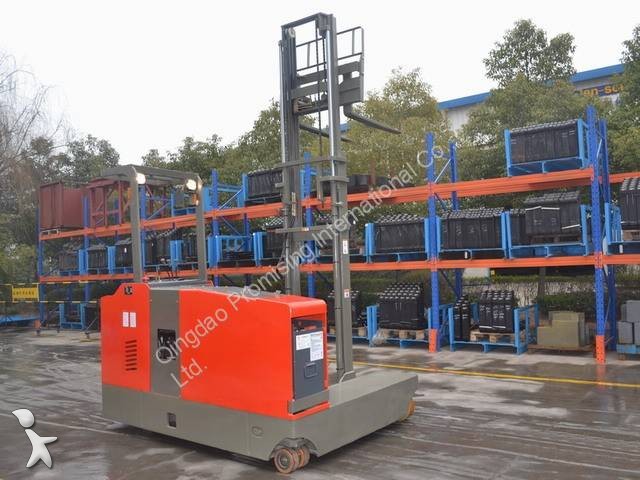

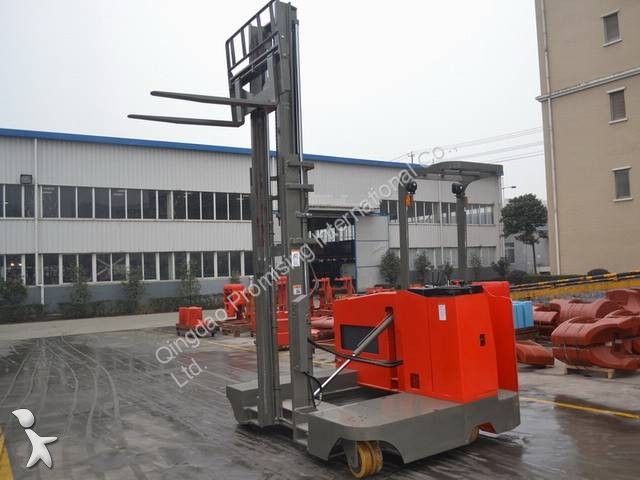

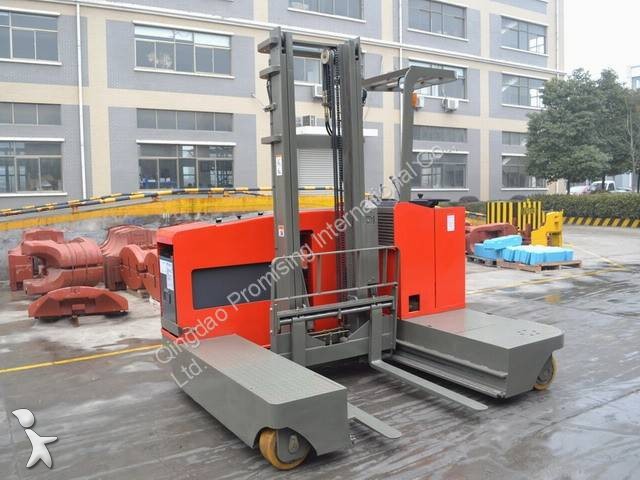

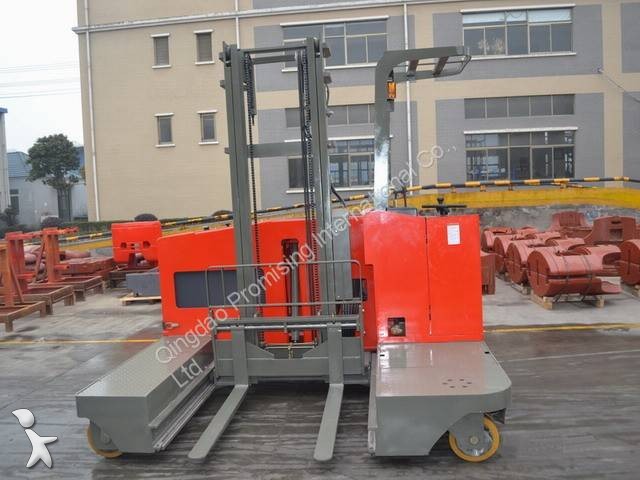

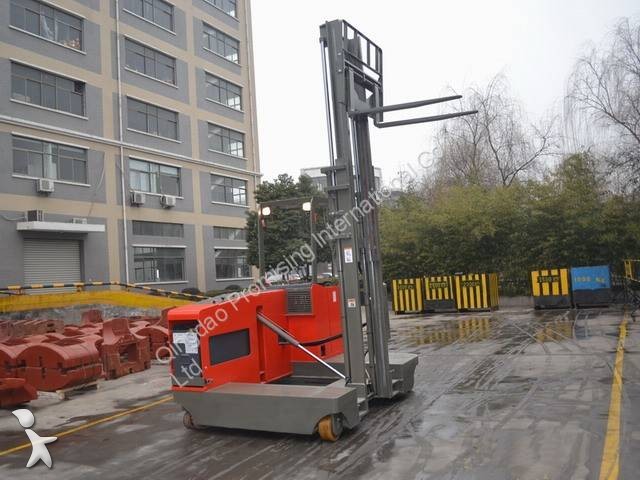

Chariot à prise latérale Dragon Machinery TD20-30 Electrique neuf

2.0T Capacity Electric Side Loading Forklift Truck TD20 Series

Rated Load: 2.0T
Lifting Height: 3.0m - 7.2m
Overall Length: 2450mm - 2580mm
Overall Width: 1830mm -2000mm
Fork Size: 920 x 100mm

Applications:
This Electric Side Loading Forklift Truck 2.0T Capacity or 2.0T Capacity Battery Powered Side Loading Forklift is ideal for multiple applications, such as narrow aisle storage, palletless handling, specialty racks and long load handling. It can move long or bulky materials in very narrow aisles and stack higher to maximize your warehouse space and make short Work of long loads.

Features:
1. Lift cylinder equipped with buffering function to ensure the safety of goods when lifting and lowering;
2. Waterproof design of all electric connectors to prevent them from short-circuiting to make the forklift more durable;
3. Better Stability;
4. Battery side-mounting design to make the change and maintenance of the battery easier;
5. Vertical drive motor to increase the service life of the forklift truck;
6. Ergonomic design and shock absorbing configuration to enhance the operator’s comfort;
7. Electromagnetic brake to make the parking brake safer;

Technical specifications
Model: TD20
Power Type: Electric
Operation Type: Stand-on
Rated Load Capacity: 2000kg
Load Center: 500mm
Wheel (Tyre) Type: Polyurethane Solid Tyre
Rear (Driving) Wheel: Ø380x165mm
Auxiliary (Balance) Wheel: Ø204x76mm
Front (Load) Wheel: Ø276x114mm
Numbers of Wheel, F/R/Aux. (X=Driving): 2 / 1X / 2
Mast Tilt Angle (Forward/Backward): 3/5deg.
Standard Lifting Height: 3000mm
Available Lifting Height: 3.0m/3.3m/3.5m/3.7m/4.0m/4.5m/5.0m/5.5m/6.0m/6.3m/6.5m/6.8m/ 7.0m/7.2m
Free Lift: 100mm
Height of Overhead Guard: 2330mm
Height of Mast Lowered: 2094mm
Height of Mast Extended (with Backrest): 3885mm
Height from Pedal to Overhead Guard: 1900mm
Min. Ground Clearance: 85mm
Overall Length: 2480mm
Overall Width: 2000mm
Reach Stroke: 1065mm
Min. Turning Radius: 2572mm
Wheelbase: 2169mm
Front Overhang: 226mm
Front/Rear Wheel Tread: 1704/1124mm
Fork Dimensions (L*W*T): 920*100*45mm
Fork Spread: 247~1072mm
Aisle Width with 1000*1000 Pallet: 2772mm
Max. Travel Speed (Full-load/No-load): 6.0/7.0km/h
Lifting Speed (Full-load/No-load): 120/270mm/s
Battery: 48V/400Ah
Charge: 48V/50A
Type of Steering: Full Hydraulic
Service Brake: Electromagnetic
Parking Brake: Electromagnetic
Drive Motor: 5.5kW (AC)
Lift Motor: 7.5kW (DC)
Battery Weight: 650kg
Service Weight (with Battery): 4500kg

Note:
1. Technical specifications are for standard models only.
2. Other optional accessories, functions and requirements are available upon request.
3. All specifications and design characteristics are subject to change without prior notice.
